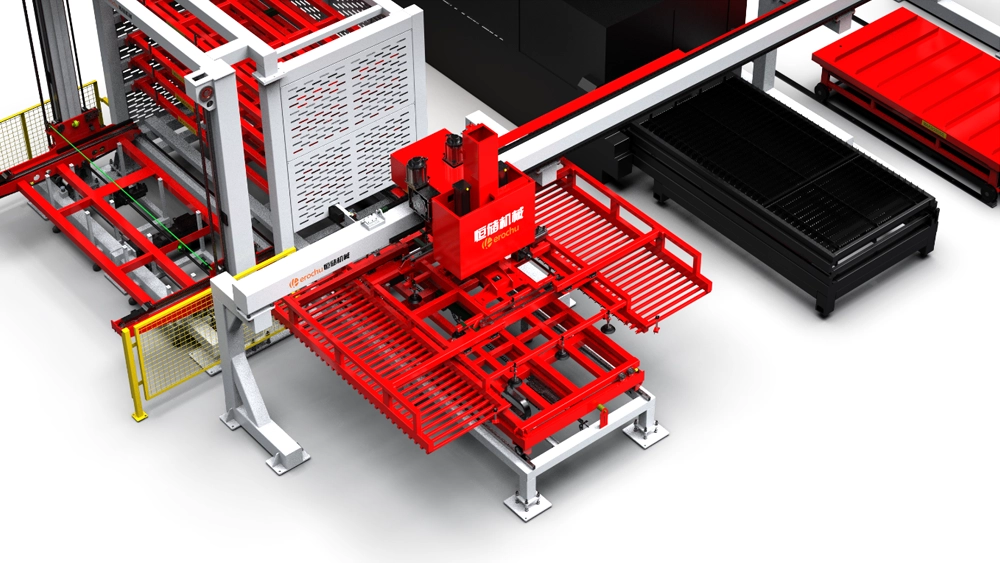

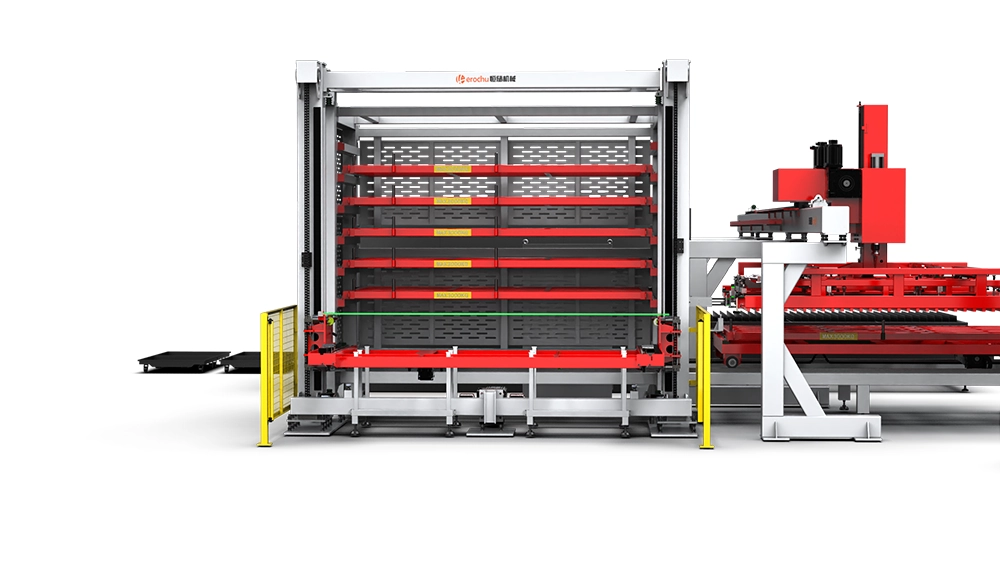

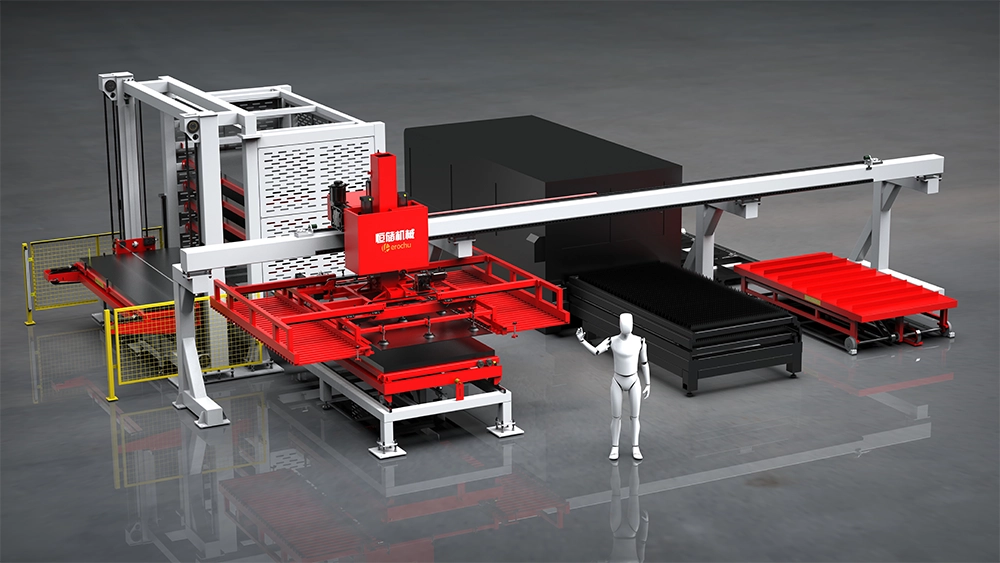

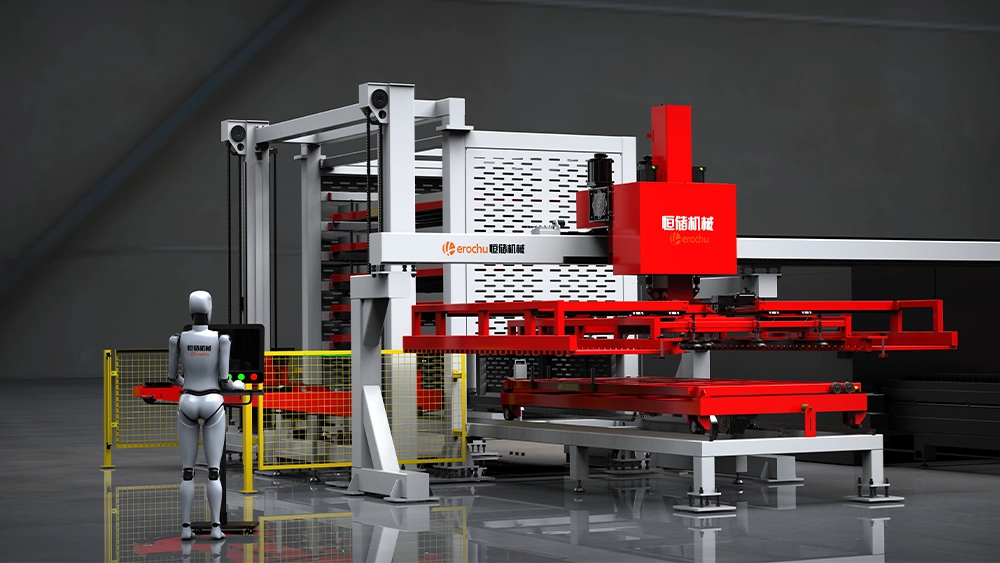

Automatic composite loading and unloading + plate storage warehouse (side)

The system consists of a set of three-dimensional storage warehouse, a set of bilateral gantry truss, a set of loading and unloading composite truss manipulator, a finished material truck, PLC control system,and a laser cutting machine to form a sheet metal automatic production unit.

Keywords:

Automation sheet metal cutting and storage

Performance Profile

The system consists of a set of three-dimensional storage warehouse, a set of bilateral gantry truss, a set of loading and unloading composite truss manipulator,

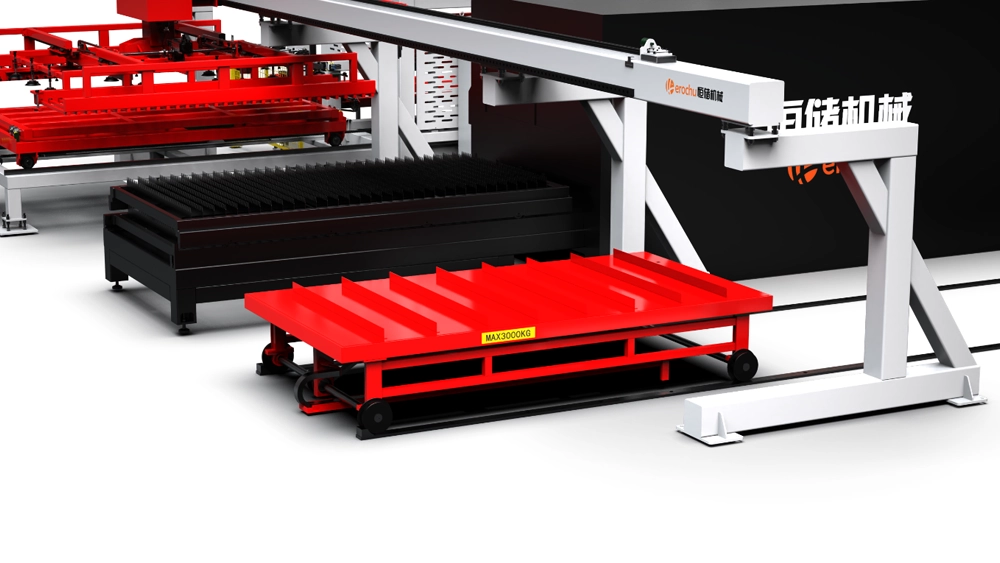

 a finished material truck, PLC control system,and a laser cutting machine to form a sheet metal automatic production unit.

 It can realize centralized three-dimensional storage of plates,automatic warehousing, automatic picking,automatic splitting, automatic feeding,automatic cutting

and other tasks, the whole process of automatic production, can effectively guarantee product quality,improve production efficiency, reduce production costs.



Equipment technical parameters

  Specification 3015/4015/4020/6015/6020/6025mm
Number of floors 8-13
Load per layer 3T/5T
 Maximum load 300KG-3000KG
 Air consumption 1.5m³/min
 Air source    0.6-0.7Mpa



Ji'nan Constant Storage Machinery Manufacturing Co., LTD



Ji'nan Constant Storage Machinery Manufacturing Co., LTD



Ji'nan Constant Storage Machinery Manufacturing Co., LTD

Ji'nan Constant Storage Machinery Manufacturing Co., LTD

Ji'nan Constant Storage Machinery Manufacturing Co., LTD

Customer visit

Constantstorage has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of "creating brands with heart and gaining reputation with sincerity". It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
