Profile storage warehouse

Classification :

The three-dimensional material warehouse is a double tower, 17 layers of feed tower and 19 layers of main material tower, with a total of 36 storage locations. The single-storey 470mm bin can store profiles with a diameter of 220mm and a length of6000mm and below. The rated load capacity of the single-storey bin is 3000kg.

+86 13205415081

E-mail

lily@sdconstantstorage.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

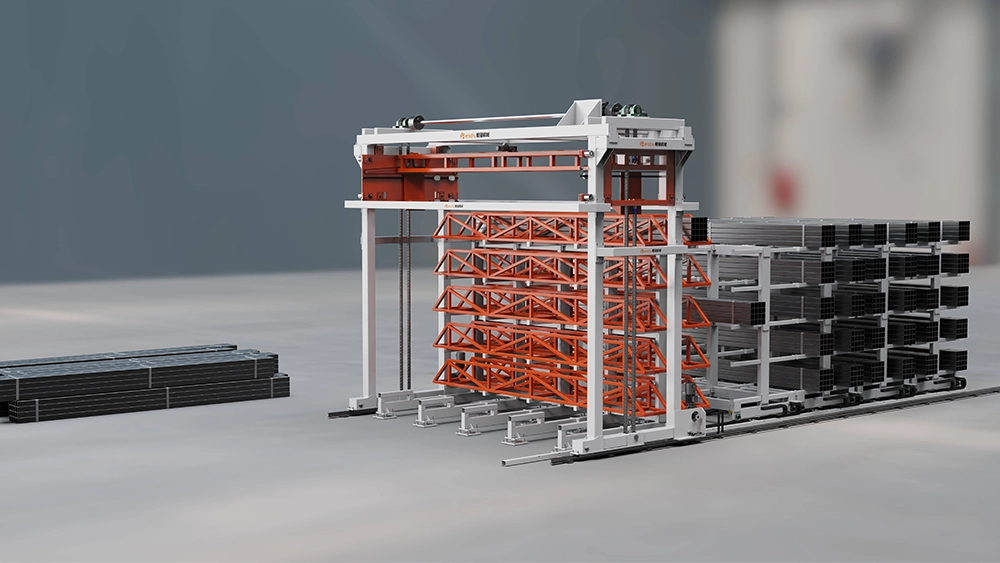

Pipes automatic storage system

The system consists of a set of loading and unloading gantry system, profile material racks, material frames, and guide rails. The main structure has a high load-bearing capacity, is sturdy and durable, and can store single or bundled profiles of different types. The number of layers and quantity of the racks can be customized according to the factory,

Specification	6000mm
Number of floors	Customizable
Load per layer	3T
mode of movement	linear guide rail + chain
transmission mode	chain drive
vertical lifting speed	9m/min
inlet and outlet speed	12m/min
Size of each grid	600*500
Number of storage units	Customizable

Customer visit

Constantstorage has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of "creating brands with heart and gaining reputation with sincerity". It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
