sheet metal handling

Classification :

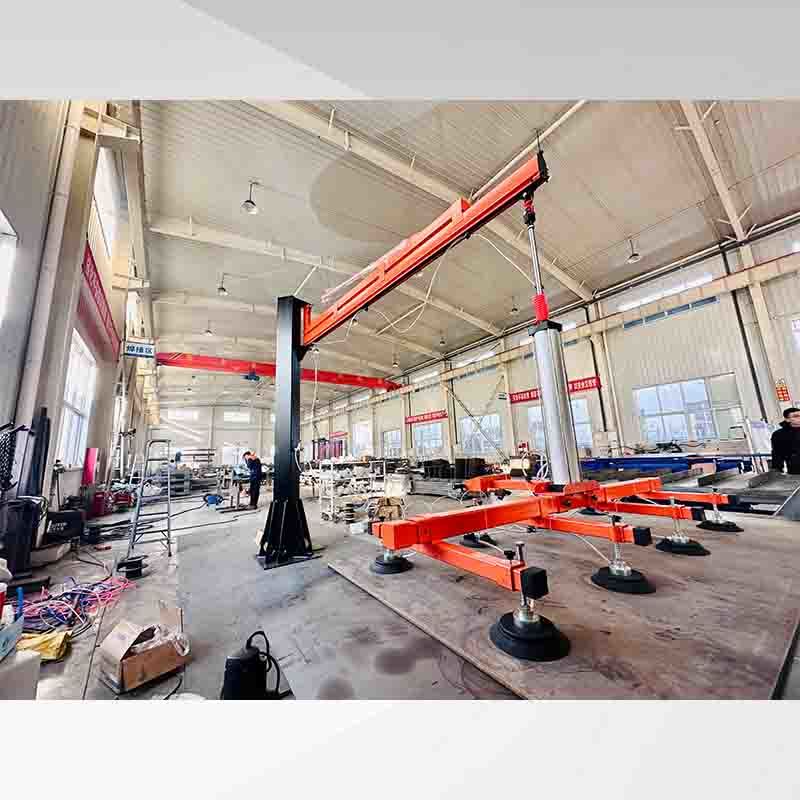

sheet metal handling：This machine has the characteristics of lightweight structure, easy disassembly and assembly, and wide use. It has high efficiency and short transportation cycle.When loading,the operator can control the movement of the work piece in space with relatively small force and can stop at any position, making the transportation process easy, fast and continuous.High safety performance, equipped with gas interruption protection and anti top loading devices.

+86 13205415081

E-mail

lily@sdconstantstorage.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Sheet handling equipment

Performance Profile

This machine has the characteristics of lightweight structure, easy disassembly and assembly, and wide use. It has high efficiency and short transportation cycle.When loading,the operator can control the movement of the work piece in space with relatively small force and can stop at any position, making the transportation process easy, fast and continuous.High safety performance, equipped with gas interruption protection and anti top loading devices.

Equipment technical parameters

product	Pneumatic cantilever loading manipulator
feeding plate thickness	1-8mm	1-12mm	1-20mm
Maximum feeding format	3000*1500mm	3000*1500mm	3000*1500mm
Minimum feeding format	1250*1250mm	1250*1250mm	1250*1250mm
Maximum plate weight	300KG	500KG	1000KG
Number of suction cups	8	8	8
Power mode	Pneumatic / Electric	Pneumatic / Electric	Pneumatic / Electric

Customer visit

Constantstorage has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of "creating brands with heart and gaining reputation with sincerity". It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
